Anatomical planes medical coding requires mastering three fundamental body planes and directional terminology. When clinical documentation states “right lower lobe pneumonia” or “anterior wall myocardial infarction,” understanding anatomical planes becomes essential for accurate ICD-10-CM and CPT code assignment. This comprehensive guide covers anatomical planes medical coding fundamentals, directional terms, body positions, and how these concepts directly impact code selection and reimbursement.

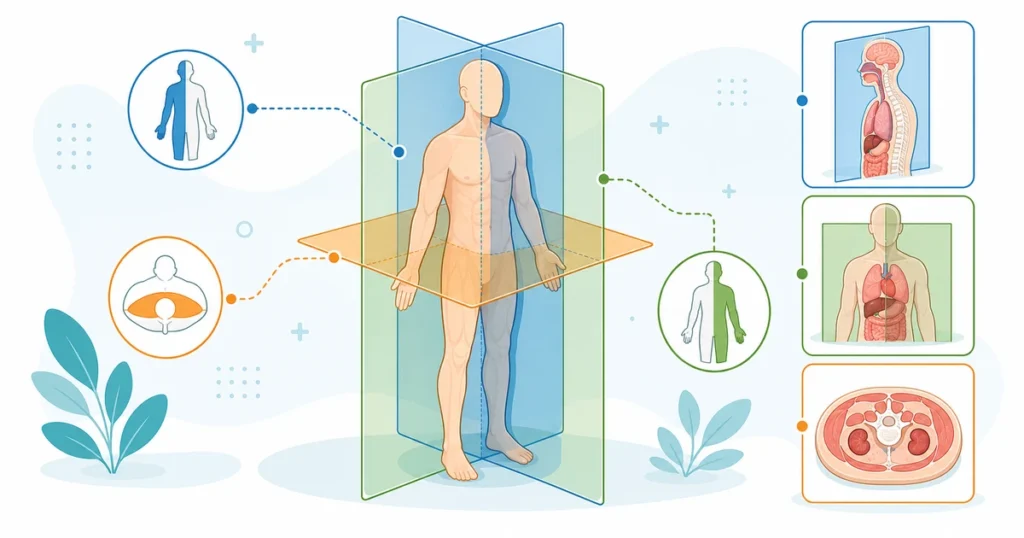

The Three Anatomical Planes
The human body is divided by three imaginary planes that help describe location and direction. All anatomical terms assume the body is in anatomical position: standing upright, face forward, arms at sides with palms facing forward.
Sagittal Plane (Anterior-Posterior Plane)
Description: A vertical plane running from front to back, dividing the body into right and left halves.
Terms used with this plane:
- Anterior (Ventral): Toward the front of the body (front of chest, belly)
- Posterior (Dorsal): Toward the back of the body (back of chest, back of neck)
- Rostral: Toward the head (used mainly for nervous system)
- Caudal: Toward the feet (used mainly for nervous system)
Coding Example: “Anterior wall myocardial infarction” uses the sagittal plane to specify which part of the heart muscle was damaged.
Frontal (Coronal) Plane
Description: A vertical plane dividing the body into front and back portions. Like a coronal scan that cuts across the body from side to side.
Terms used with this plane:
- Medial: Toward the midline of the body (toward the center)
- Lateral: Away from the midline (toward the sides)
- Ipsilateral: Same side of the body
- Contralateral: Opposite side of the body
Coding Example: “Right medial malleolus fracture” specifies a fracture on the medial (inner) side of the ankle on the right side.
Transverse (Horizontal) Plane
Description: A horizontal plane dividing the body into upper and lower sections, parallel to the ground.
Terms used with this plane:
- Superior (Cranial): Toward the head (upper part of body)
- Inferior (Caudal): Toward the feet (lower part of body)
- Proximal: Closer to a point of attachment (closer to the trunk)
- Distal: Farther from a point of attachment (farther from the trunk)
Coding Example: “Distal radius fracture” (fracture at the wrist end of the radius bone) versus “proximal radius fracture” (fracture near the elbow).
Quick Reference: Anatomical Directions
| Term | Meaning | Example in Documentation | Coding Implication |
|---|---|---|---|
| Anterior/Ventral | Front | Anterior chest pain | Myocardial infarction location (anterior wall) |
| Posterior/Dorsal | Back | Posterior wall MI | Myocardial infarction location (posterior wall) |
| Medial | Toward midline | Medial collateral ligament tear | MCL injury in knee |
| Lateral | Away from midline | Lateral epicondylitis | Tennis elbow (outer elbow) |
| Superior/Cranial | Toward head | Superior vena cava | Upper body blood vessel |
| Inferior/Caudal | Toward feet | Inferior vena cava | Lower body blood vessel |
| Proximal | Toward trunk | Proximal femur fracture (hip) | Hip fracture (upper thighbone) |
| Distal | Away from trunk | Distal femur fracture (knee) | Knee-region fracture (lower thighbone) |
| Ipsilateral | Same side | Ipsilateral leg weakness | Weakness on one side of body |
| Contralateral | Opposite side | Contralateral leg weakness after stroke | Weakness on opposite side from brain lesion |
Common Body Positions in Medical Documentation
When reviewing procedures or clinical exams, you’ll see references to specific body positions. Understanding these helps you understand what was examined and why.
| Position | Description | When Used | Clinical Significance for Coders |
|---|---|---|---|
| Supine | Lying flat on back, face up | Most common; physical exams, imaging, surgery | Standard position for abdominal, chest exams |
| Prone | Lying flat on stomach, face down | Back/spinal exams, certain surgeries | Indicates back or spinal procedure documentation |
| Left/Right Lateral | Lying on left or right side | Chest imaging, certain exams | Lateral decubitus X-ray shows fluid in lungs |
| Fowler’s | Partially upright (45-90 degree angle) | Respiratory patients, cardiac patients | Patient comfort positioning for breathing |
| Semi-Fowler’s | Less upright (30 degree angle) | Postoperative patients | Compromise position for comfort |
| Trendelenburg | Head lower than feet (decline position) | Abdominal/pelvic surgery, shock management | Indicates specific surgical approach or treatment |
| Reverse Trendelenburg | Head higher than feet (incline position) | Head/neck surgery, GI procedures | Indicates specific surgical approach |
| Lithotomy | Lying back with legs elevated in stirrups | Gynecological exams, urological procedures | Standard for pelvic procedures |
| Sim’s Position | Left lateral with right leg bent forward | Rectal exams, enema administration | Indicates GI procedure |
Clinical Abbreviations Using Anatomical Terminology
Many medical abbreviations use directional terms. Understanding what they mean helps you code accurately:
- RUQ: Right Upper Quadrant (right side of abdomen above waist)
- LLQ: Left Lower Quadrant (left side of abdomen below waist)
- RLL: Right Lower Lobe (right lung, bottom portion)
- LUL: Left Upper Lobe (left lung, upper portion)
- MCL: Medial Collateral Ligament (knee ligament on inside)
- ACL: Anterior Cruciate Ligament (knee ligament in front)
- AVM: Arteriovenous Malformation (can occur in various locations)
Deep vs Superficial — Layering Terms
Additional directional terms describe depth within body tissues:
- Superficial: Near the surface (skin, muscles close to surface)
- Deep: Away from surface (organs, deeper muscle layers)
- Subcutaneous: Under the skin (fat layer, injections)
- Subcortical: Below the cortex (in brain terminology)
Example: “Superficial laceration” means a cut near the skin surface (less severe), while “deep laceration” might involve muscle or organs (more severe).
How Anatomical Terms Affect Coding Decisions
| Condition | Anatomical Location | Why It Matters for Coding | Example |
|---|---|---|---|
| Myocardial Infarction | Anterior vs Posterior vs Lateral vs Inferior wall | Different codes for each location (I21.01, I21.11, I21.21, I21.31) | Anterior wall MI: I21.01 vs Posterior wall MI: I21.11 |
| Stroke | Right vs Left hemisphere, specific artery affected | Code reflects location and affected artery (I63.31 vs I63.51) | Right MCA stroke vs Left PCA stroke |
| Fracture | Proximal vs Distal, site specificity | Different codes for same bone at different locations (S52.001 vs S52.531) | Proximal radius fracture vs Distal radius fracture |
| Pneumonia | Right vs Left, upper vs lower lobe | All four combinations have different codes | Right lower lobe: J18.91 vs Left upper lobe: J18.92 |
| DVT/PE | Right vs Left, upper vs lower extremity | Different codes for each site (I82.401 vs I82.411) | Right DVT vs Left DVT |
Why Anatomical Terminology Matters for Coders
Understanding anatomical planes, directions, and positions helps you:
- Recognize location specifications in clinical documentation that affect code assignment
- Understand why “anterior wall MI” and “posterior wall MI” are different codes
- Know what procedures were done based on position (lithotomy = gynecological procedure)
- Decode abbreviations like RUQ, LLQ, RLL, and understand their anatomical meaning
- Ask clarifying questions when documentation lacks specificity (which lobe? which side?)
- Accurately code conditions that differ based on anatomical location
While anatomical terminology might seem like a separate topic from coding, it’s actually fundamental to understanding medical documentation. The more fluent you become in anatomical language, the easier it becomes to identify missing specificity and code conditions accurately.
