The urinary system removes waste from the blood and regulates fluid balance, electrolytes, and acid-base balance. Kidney disease is incredibly common — approximately 37 million Americans have chronic kidney disease, many unaware of their condition. Urinary tract infections affect millions annually, and acute kidney injury is a serious complication in hospitalized patients. Understanding renal and urinary anatomy is essential for accurate ICD-10-CM coding. This guide covers kidney anatomy, urinary system function, and coding requirements for common conditions.
Kidney Anatomy — The Functional Unit: The Nephron
The kidneys contain approximately 1 million functional units called nephrons, each capable of filtering blood and producing urine.
The Nephron Structure
| Component | Function | Clinical Significance |
|---|---|---|
| Glomerulus (Bowman’s capsule) | Filters water, glucose, urea, small molecules from blood | Damaged in diabetic nephropathy, glomerulonephritis; determines GFR |
| Proximal Convoluted Tubule | Reabsorbs glucose, amino acids, water, ions | Site of toxic drug accumulation |
| Loop of Henle | Creates concentration gradient for water reabsorption | Damaged by loop diuretics (furosemide); important for concentration |
| Distal Convoluted Tubule | Fine-tunes electrolyte balance (sodium, potassium) | Regulated by aldosterone; key to blood pressure control |
| Collecting Duct | Final water reabsorption under ADH control | Dysfunction causes diabetes insipidus |
Key Kidney Functions for Coders to Understand
- Filtration: Blood enters glomerulus where small molecules are filtered into Bowman’s capsule. Large proteins and blood cells normally stay in blood.
- Reabsorption: Useful substances (glucose, water, electrolytes, amino acids) are reabsorbed back into bloodstream.
- Secretion: Additional waste products and excess ions are actively secreted into tubules.
- Urine Formation: What remains after reabsorption becomes urine, concentrated and stored in bladder.
Glomerular Filtration Rate (GFR) — Essential Kidney Function Measure
GFR measures how much blood the kidneys filter per minute. It’s the best indicator of kidney function.
| GFR Level (mL/min) | CKD Stage | Kidney Function | ICD-10-CM Code |
|---|---|---|---|
| ≥ 90 | Stage 1 | Normal or high | N18.1 |
| 60-89 | Stage 2 | Mildly decreased | N18.2 |
| 30-59 | Stage 3a/3b | Moderately decreased | N18.3 |
| 15-29 | Stage 4 | Severely decreased | N18.4 |
| < 15 | Stage 5 (ESRD) | Kidney failure (needs dialysis or transplant) | N18.5 or N18.6 |
Chronic Kidney Disease (CKD) — The Most Frequently Coded Renal Condition
Causes of CKD
The top two causes of CKD are diabetes (35%) and hypertension (25%). Other causes include:
- Glomerulonephritis (inflammation of glomeruli)
- Polycystic kidney disease (inherited)
- Chronic pyelonephritis (repeated kidney infections)
- Obstructive uropathy (blockage of urine flow)
- Lupus and other autoimmune diseases
CKD Coding Requirements
Codes: N18.1 – N18.6 (CKD Stage 1-5)
Always Code If Present:
- The CKD stage (mandatory)
- The underlying cause if known (diabetes, hypertension)
- Any complications (proteinuria, anemia, bone disease)
CKD with Diabetes
- Code both diabetes AND CKD stage
- Diabetes code: E10/E11 with .22x (kidney disease)
- PLUS separate CKD stage code (N18.x)
- Example: Type 2 + CKD Stage 3 = E11.22 + N18.3
CKD with Hypertension
- Code both hypertension AND CKD stage
- HTN code: I12.x (HTN with CKD)
- PLUS separate CKD stage code (N18.x)
- Example: HTN + CKD Stage 4 = I12 + N18.4
Acute Kidney Injury (AKI) — Hospital-Acquired Complication
AKI is sudden loss of kidney function, usually in hospitalized patients. Unlike CKD which is progressive, AKI can be reversible.
AKI Stages
| Stage | Creatinine Change | Urine Output | Clinical Description | Code |
|---|---|---|---|---|
| 1 | 1.5-1.9x baseline | < 0.5 mL/kg/hr for 6-12 hrs | Mild increase in serum creatinine | N17.1 |
| 2 | 2-2.9x baseline | < 0.5 mL/kg/hr for ≥ 12 hrs | Moderate increase in serum creatinine | N17.2 |
| 3 | ≥ 3x baseline or ≥ 4.0 mg/dL | < 0.3 mL/kg/hr for ≥ 24 hrs or anuria for ≥ 12 hrs | Severe, may require dialysis | N17.3 |
Common Causes of AKI
- Prerenal (60% of cases): Decreased blood flow to kidneys (shock, dehydration, sepsis)
- Intrarenal (35%): Direct kidney damage (nephrotoxic drugs, contrast dye, rhabdomyolysis)
- Postrenal (5%): Obstruction of urine flow (kidney stones, enlarged prostate, tumors)
Urinary Tract Infections (UTI) — Most Common Infection
UTI Classification
| Type | Definition | Common Organism | ICD-10-CM Code | Symptoms |
|---|---|---|---|---|
| Cystitis (Lower UTI) | Infection of bladder | E. coli (80-90%) | N39.0 or N39.9 | Dysuria (pain), frequency, urgency |
| Pyelonephritis (Upper UTI) | Infection of kidney and renal pelvis | E. coli | N10 | High fever, flank pain, nausea, vomiting |
| Urosepsis | UTI complicated by sepsis (systemic infection) | Various gram-negative organisms | Sepsis code + site code | Shock, altered mental status |
| Asymptomatic Bacteriuria | Bacteria in urine WITHOUT symptoms | Varies | R39.81 | None (by definition) |
UTI Coding Considerations
- Must specify site (upper vs lower, kidney vs bladder)
- Organism identification (if documented) should be coded separately (B95.x, B96.x)
- Recurrent UTI must be documented for code N39.40-N39.48
- Complicated UTI (obstruction, catheter, pregnancy) coded differently
Dialysis and Renal Replacement Therapy
Hemodialysis
Blood is filtered through an external machine using an arteriovenous fistula or graft.
Coding: Status codes Z99.2 (dependence on hemodialysis), Z91.15 (noncompliance with dialysis)
Peritoneal Dialysis
Fluid is infused into peritoneal cavity where dialysis occurs across the peritoneal membrane.
Coding: Z99.2 (dependence on dialysis — same code for both types)
Kidney Transplant
Donation of kidney from living or deceased donor with surgical implantation.
Coding: Z94.0 (transplanted kidney and pancreas status), complications coded separately

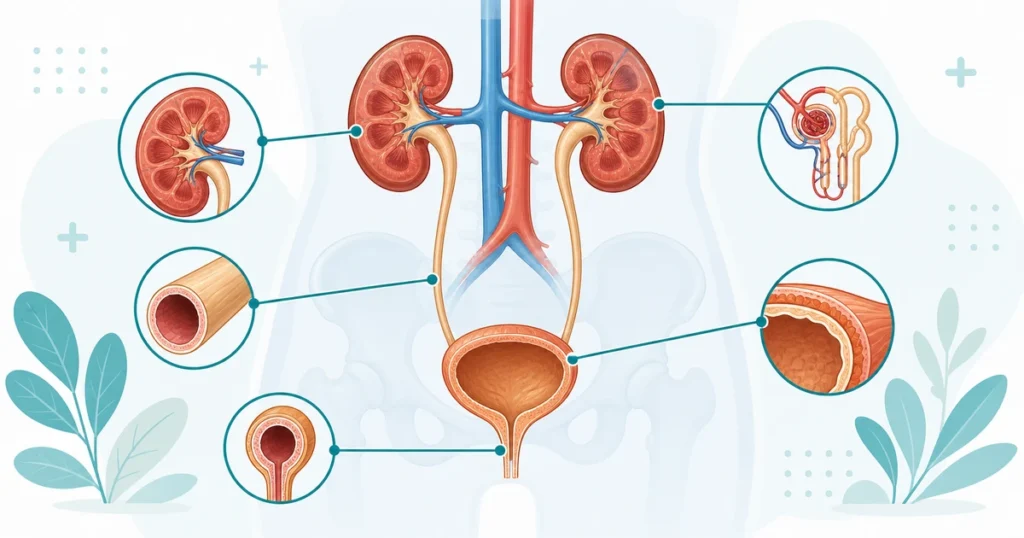

Urinary System Anatomy — Ureter, Bladder, Urethra
Once urine is formed in the nephrons, it travels through the collecting ducts into the renal calyces, then the renal pelvis.
Anatomical Structures
- Ureters: Two tubes that transport urine from kidneys to bladder. Peristalsis (muscular contractions) moves urine downward.
- Bladder: Muscular organ that stores urine. Normal capacity 400-500 mL. Can stretch to accommodate more with sensation of fullness.
- Urethra: Tube that carries urine from bladder to outside body. Much shorter in females (4 cm) than males (20 cm) — explains higher UTI rate in women.
Common Urinary Conditions
- Nephrolithiasis (Kidney stones): Hard deposits form in kidney. N20-N21 codes. Extremely painful when passing through ureter.
- Hydronephrosis: Swelling of kidney due to urine backup from obstruction. N13 codes.
- Incontinence: Involuntary urine leakage. Different types: stress, urge, overflow. R39.8 codes.
- Urinary Retention: Inability to empty bladder completely. R33 codes.
Proteinuria and Albuminuria — Markers of Kidney Damage
Normally, large proteins like albumin stay in blood and don’t filter into urine. Protein in urine indicates glomerular damage.
Types of Proteinuria
- Microalbuminuria: 30-300 mg albumin per 24 hours. Early sign of diabetic nephropathy.
- Proteinuria: > 300 mg protein per 24 hours. Indicates moderate to severe kidney disease.
- Nephrotic Syndrome: > 3.5 g protein per 24 hours. Causes edema, hypoalbuminemia, hyperlipidemia.
Coding: R80.x (proteinuria), R81.x (albuminuria) — codes based on severity
Why Renal and Urinary System Knowledge Matters
Understanding renal anatomy and function helps you:
- Code CKD accurately with proper stage specification
- Understand why certain lab values (creatinine, BUN, GFR) indicate kidney problems
- Code AKI with appropriate severity stage
- Recognize UTI complications (pyelonephritis, urosepsis)
- Understand why diabetes and hypertension cause kidney disease (and both must be coded)
- Code dialysis and transplant status correctly
Kidney disease is incredibly prevalent and frequently coded. Mastering renal system anatomy and coding requirements will significantly improve your coding accuracy and confidence on the CPC exam.
